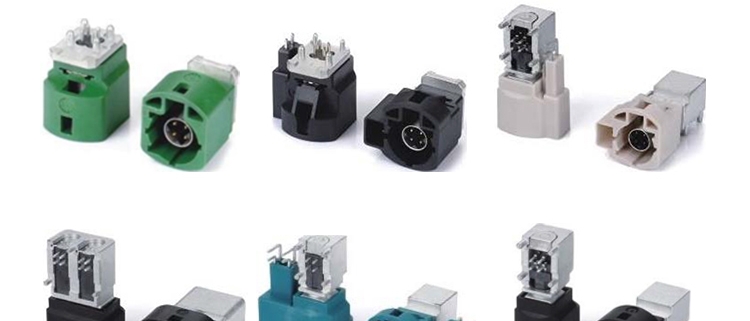

Measures for Improving the Reliability of HSD Connectors

With the rapid development of the electronics industry, HSD connectors are increasingly being used in electronic products. However, HSD connectors can suffer from various failure modes and causes. To improve their reliability, the following measures can be taken:

Addressing the Problem of Increased Contact Resistance

(1) Select elastic materials that have good elasticity, high stiffness, high strength, and resistance to stress relaxation.

(2) Improve the plating quality. The plating metal material not only requires good conductivity but also must be resistant to wear and corrosion.

(3) Improve the processing and assembly accuracy to ensure the correct fit between the pins and sockets.

(4) Use and operate the connectors correctly to avoid forced plugging and straightening.

Addressing the Problem of Open Circuits

(1) Use appropriate crimping tools to avoid damaging the crimping cavity and wire.

(2) Improve the accuracy of the base, pins, and sockets, as well as the concentricity of the pins and sockets.

(3) Choose pin materials that have good mechanical properties and are not easily bent or deformed.

Addressing the Problem of Short Circuits and Decreased Insulation Resistance

(1) Choose insulation materials that have good environmental stress resistance, moisture resistance, excellent dielectric properties, and good processing performance.

(2) During processing, avoid contaminating the insulation and potting materials to prevent metal particles or other conductive substances from being embedded in the materials.

(3) Maintain a clean production environment to prevent contact parts from having conductive metal debris and other particles.

(4) Improve the mold and processing technology to prevent insulation components from producing bubbles and cracks.

(5) Use and operate the connectors correctly to avoid causing pin looseness, deformation, or damage due to forced plugging and unplugging.

Addressing the Problem of Increased Insertion/Extraction Force and Decreased Connector Life

(1) Choose base materials that have stable size, good stiffness, and high strength.

(2) Improve the processing accuracy and consistency of the base, pins, and sockets.

(3) Choose high-quality plating materials that are corrosion-resistant and improve the plating quality.

Addressing the Problem of Increased Voltage Standing Wave Ratio

(1) Take measures to reinforce the cable joints.

(2) Take various measures to eliminate unstable factors that cause contact resistance.

(3) Pay attention to aligning the contact parts of the plug and socket during insertion and removal. The size of the male and female contacts should be properly matched.

(4) Choose materials with stable performance for the dielectric between the inner and outer conductors.

(5) Pay attention to using the connectors within the specified frequency range.

In conclusion, by adopting the above measures, the reliability of HSD connectors can be improved, and their failure modes and causes can be effectively addressed.

FAQs

1. What is an HSD connector?
   • HSD connector stands for high-speed data connector, which is a type of connector used for high-speed data transmission in electronic products.
2. What are some common failure modes of HSD connectors?
   • Some common failure modes of HSD connectors include increased contact resistance, open circuits, short circuits, decreased insulation resistance, increased insertion/extraction force, and increased voltage standing wave ratio.
3. Why is contact resistance important in HSD connectors?
   • Contact resistance is important in HSD connectors because it can affect the signal quality and cause transmission errors.
4. What is the importance of using appropriate crimping tools?
   • Using appropriate crimping tools is important because it can prevent damage to the crimping cavity and wire, which can result in poor electrical performance and potentially cause connector failure. Additionally, using the appropriate crimping tool ensures that the connector and wire are properly matched, which is crucial for achieving optimal electrical performance.
