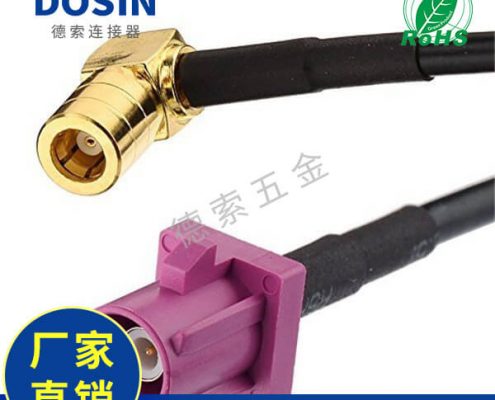

Fakra wire harness manufacturer specializes in Fakra male to SMB female RG174 assembly wire harness manufacturer

SKU: EB-101-0085
Material:Brass/Teflon/phosphorus/gold plating/nickel plating/plastic
other:Provide size and material adjustment services (customized proofing)
Features:

  • ISO certified manufacturer, product quality meets ROHS, UL, REACH standards;

  • Factory direct sales and wholesale prices, free sample testing; products can be customized according to material and performance requirements;

  • Produced according to international MIL-C-39012, CECC22120 and IEC60169-8 standards. The product design is reasonable and compact, reducing installation space;

  • It has a wide range of applications and is mostly used in automotive electronics. It has an all-copper inner core with multiple colors and buckles.

  • Push-in interface is very suitable for quick plug-in and pull-out, convenient and fast;

  • High cost performance, excellent broadband performance and low reflectivity, and stable performance;

Online inquiry

Impedance 50 Ohm
Frequency range 0 to 6 GHz
Rated voltage 225 VRMS
Withstand voltage 1000 Volts
Insulation resistance 5000 MΩ min
Insertion force 20 N max
Pull-out force 10 N min
Mating durability More than 500 times (when using beryllium copper center pin)
Temperature range -65℃ to +165℃
Widget Materials Surface treatment
Body Brass Nickel plating
Center pin Phosphor Bronze Gold plating
Insulator TEFLON —-
