Troubleshooting Mini Fakra Connectors: Common Forms of Malfunction and How to Fix Them

Mini Fakra connectors are widely used in the automotive industry as they provide excellent signal transmission, reliability, and stability. However, like any other electronic component, these connectors can also malfunction, leading to signal loss, system failures, and other issues. In this article, we will explore the common forms of malfunction in mini Fakra connectors, their causes, and possible solutions.

Introduction

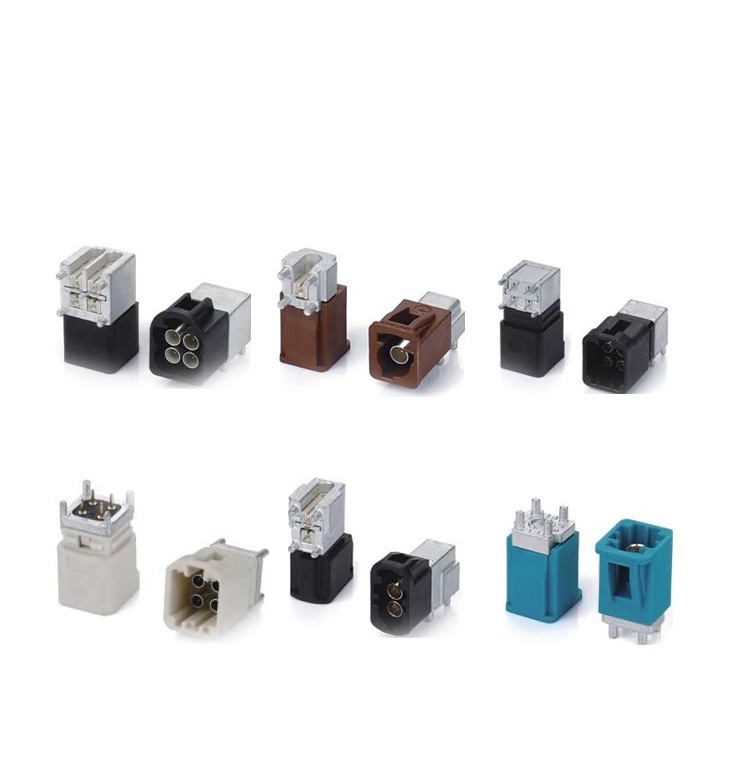

The mini Fakra connector is a compact, high-performance RF connector widely used in the automotive industry. It is designed to provide reliable signal transmission between different electronic components in a vehicle, such as GPS antennas, car radios, and satellite radios. However, due to the harsh operating conditions in a vehicle, these connectors can malfunction over time, leading to a range of problems.

Types of Mini Fakra Connector Malfunction

1. Signal Loss

One of the most common forms of malfunction in mini Fakra connectors is signal loss. This happens when the connector fails to transmit or receive signals, leading to poor audio or video quality, GPS location errors, and other issues.

Causes of Signal Loss

Corrosion or oxidation of the connector due to exposure to moisture, salt, or other contaminants.
Physical damage to the connector due to vibration, shock, or impact.
Poor installation or improper mating of the connector.

Solutions for Signal Loss

Clean the connector with a suitable contact cleaner or isopropyl alcohol.
Replace the connector if it is damaged or worn out.
Ensure proper installation and mating of the connector.

2. System Failure

Another common form of malfunction in mini Fakra connectors is system failure. This happens when the connector fails to provide power or ground to the electronic component it is connected to, leading to system shutdown or other issues.

Causes of System Failure

Loose or damaged wires in the connector.
Faulty or damaged pins in the connector.
Poor connection between the connector and the electronic component.

Solutions for System Failure

Check the wires and pins in the connector for damage or looseness.
Replace the connector if necessary.
Ensure proper connection between the connector and the electronic component.

3. Cross-Talk

Cross-talk is a form of malfunction in mini Fakra connectors where signals from one electronic component interfere with the signals of another component. This can lead to poor audio or video quality, GPS location errors, and other issues.

Causes of Cross-Talk

Improper shielding of the connector.
Poor quality or damaged connector.
Improper installation or mating of the connector.

Solutions for Cross-Talk

Use a properly shielded connector.
Replace the connector if it is of poor quality or damaged.
Ensure proper installation and mating of the connector.

4. Frequency Drift

Frequency drift is a form of malfunction in mini Fakra connectors where the frequency of the signal transmitted or received by the connector changes over time. This can lead to audio or video distortion, GPS location errors, and other issues.

Causes of Frequency Drift

Poor quality or damaged connector.
Temperature changes affecting the connector.
Poor installation or mating of the connector.

Solutions for Frequency Drift

Replace the connector if it is of poor quality or damaged.
Use a connector that can withstand temperature changes.
Ensure proper installation and mating of the connector.

Conclusion

Mini Fakra connectors are essential components in the automotive industry that provide reliable signal transmission between electronic components. However, these connectors can malfunction over time, leading to signal loss, system failures, cross-talk, frequency drift, and other issues. By understanding the common forms of malfunction and their causes, we can take appropriate measures to prevent or solve them, ensuring the reliable continuity of the vehicle’s electronic systems.

FAQs

What is a mini Fakra connector?

A mini Fakra connector is a compact, high-performance RF connector widely used in the automotive industry to transmit signals between electronic components.

What are the common forms of malfunction in mini Fakra connectors?

The common forms of malfunction in mini Fakra connectors are signal loss, system failure, cross-talk, and frequency drift.

What causes signal loss in mini Fakra connectors?

Signal loss in mini Fakra connectors is caused by corrosion or oxidation of the connector, physical damage to the connector, or poor installation or improper mating of the connector.

How can I prevent cross-talk in mini Fakra connectors?

You can prevent cross-talk in mini Fakra connectors by using a properly shielded connector, replacing the connector if it is of poor quality or damaged, and ensuring proper installation and mating of the connector.

How can I solve frequency drift in mini Fakra connectors?

You can solve frequency drift in mini Fakra connectors by replacing the connector if it is of poor quality or damaged, using a connector that can withstand temperature changes, and ensuring proper installation and mating of the connector.
